前言
同学在群中分享某虚拟定位轻松跑步法。
作为旁观者,萌生出模拟请求进行数据伪造来完成任务(老操作了,像骨灰盒自动参加赠楼这种)

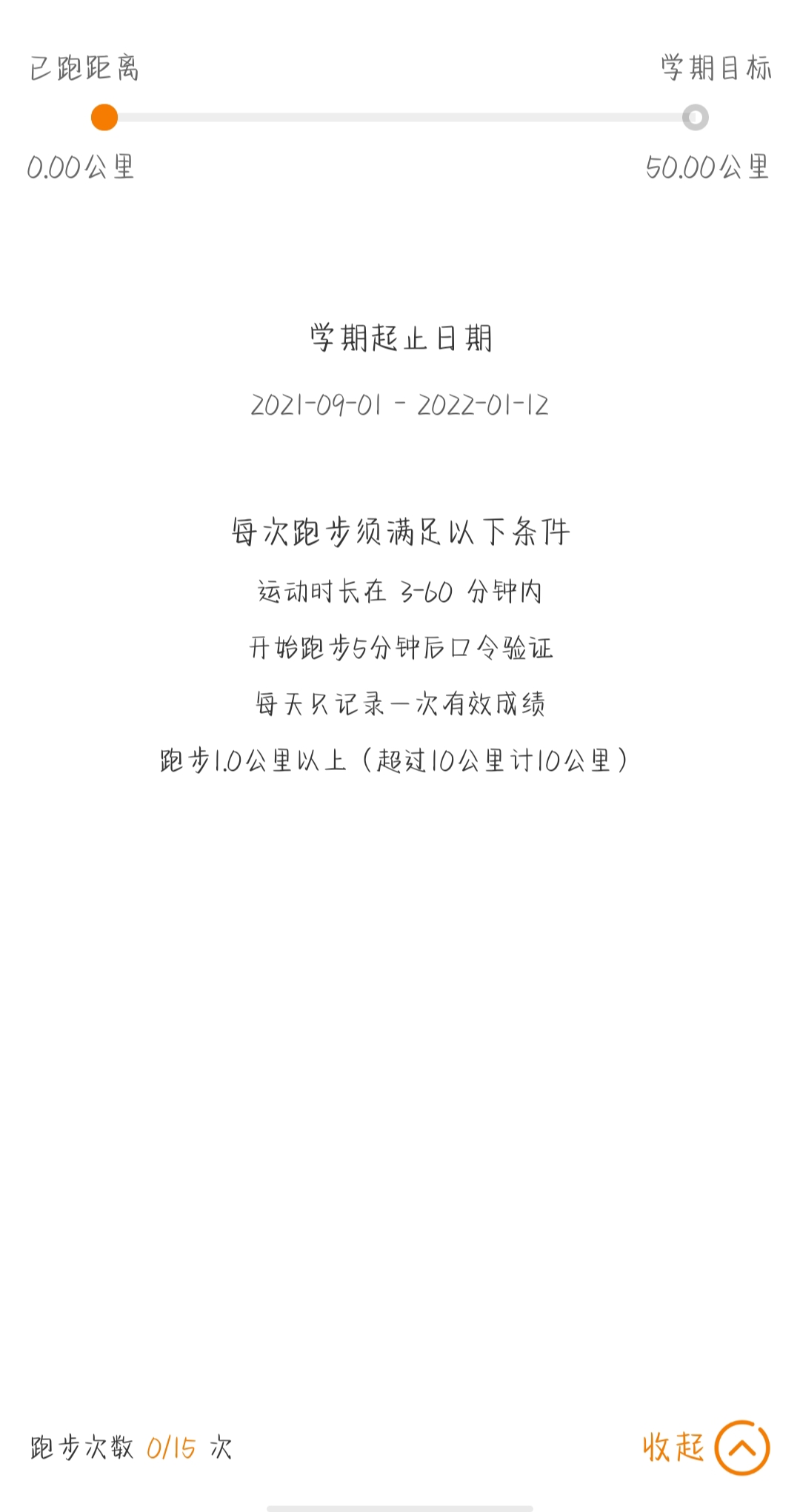

某校园跑软件
其实要求还算可以,极限情况:50天、每天1公里5分钟;就是不太好坚持
分析思路
- 抓包,看请求是否有签名,没有就去第4步
- 检测安装包是否有壳,无壳就去第4步
- 脱壳
- 分析代码
- 伪造请求
- 等待正义的审判 #(受虐滑稽)

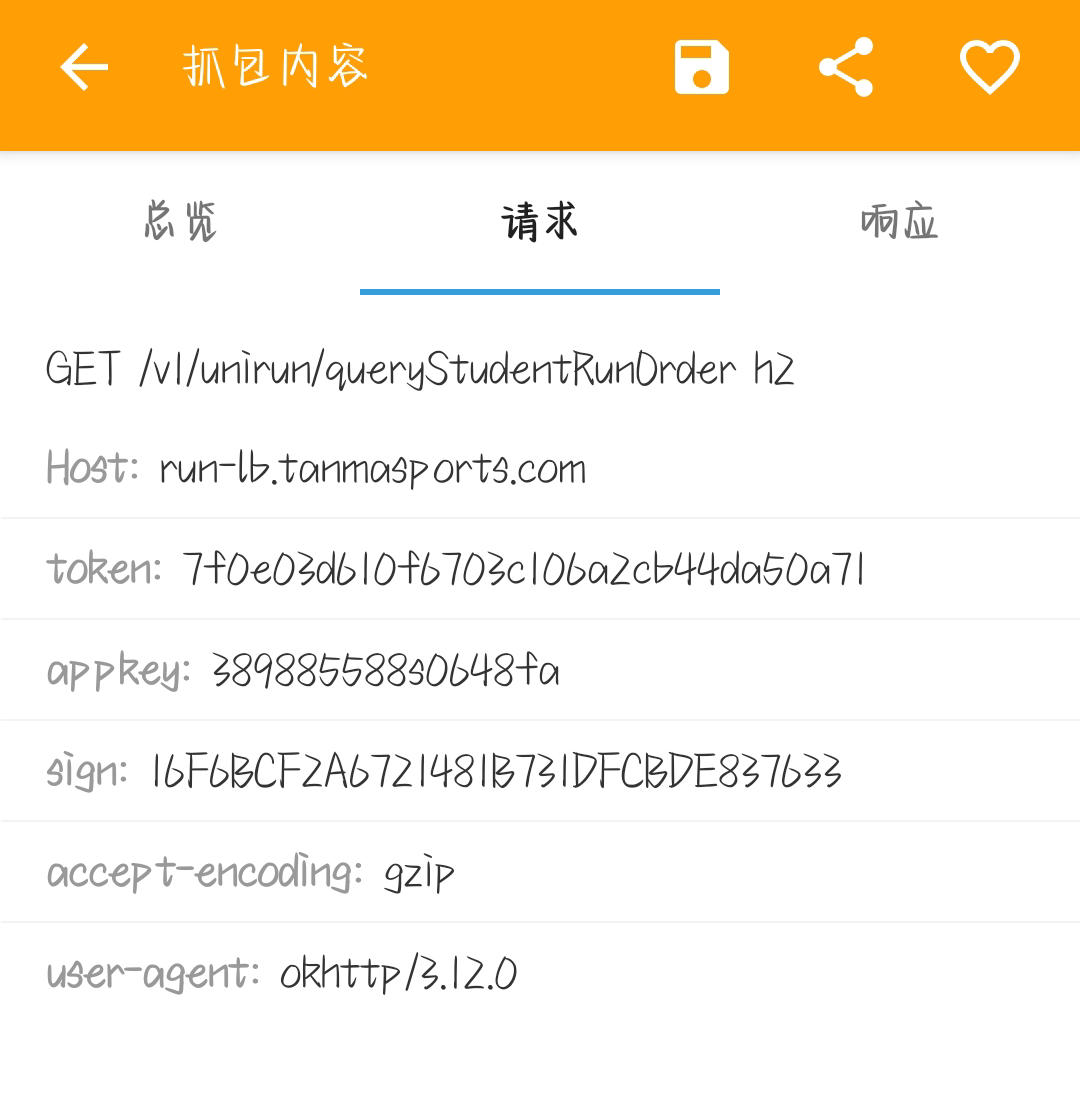

一、先抓包(非重点,不过多赘述)
token 理论上是用户标识
appkey 肯定大部分时间为定值
sign MD5签名
二、查壳
360加固,一般 #(cos滑稽)

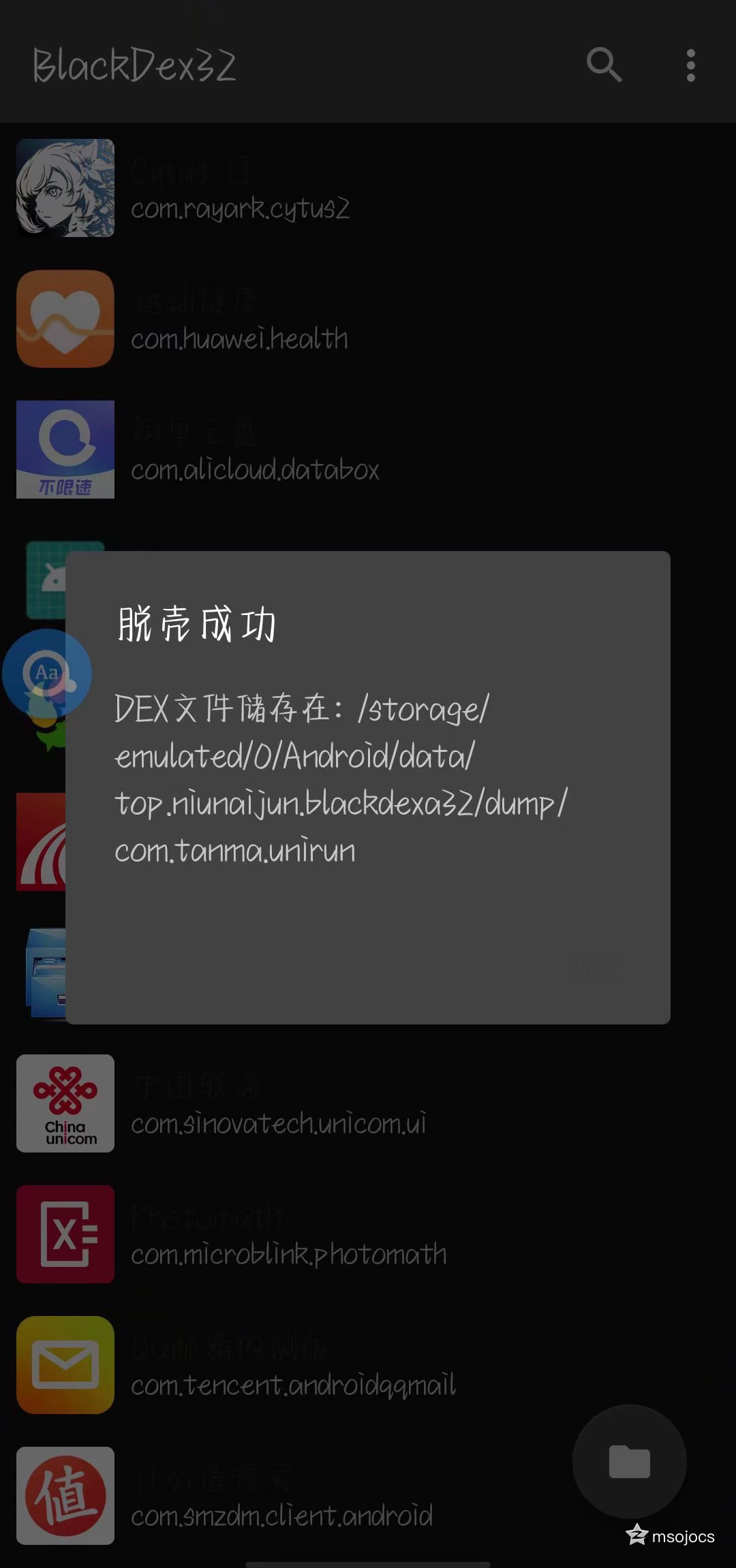

三、脱壳
这里使用这个工具:
下载32位版本安装包(因为,目标APP是32位的)
顺便记下包名com.tanma.unirun
单击目标应用,开始脱壳
四、分析目标“源码”位置
打开脱壳后的dex文件所在目录,

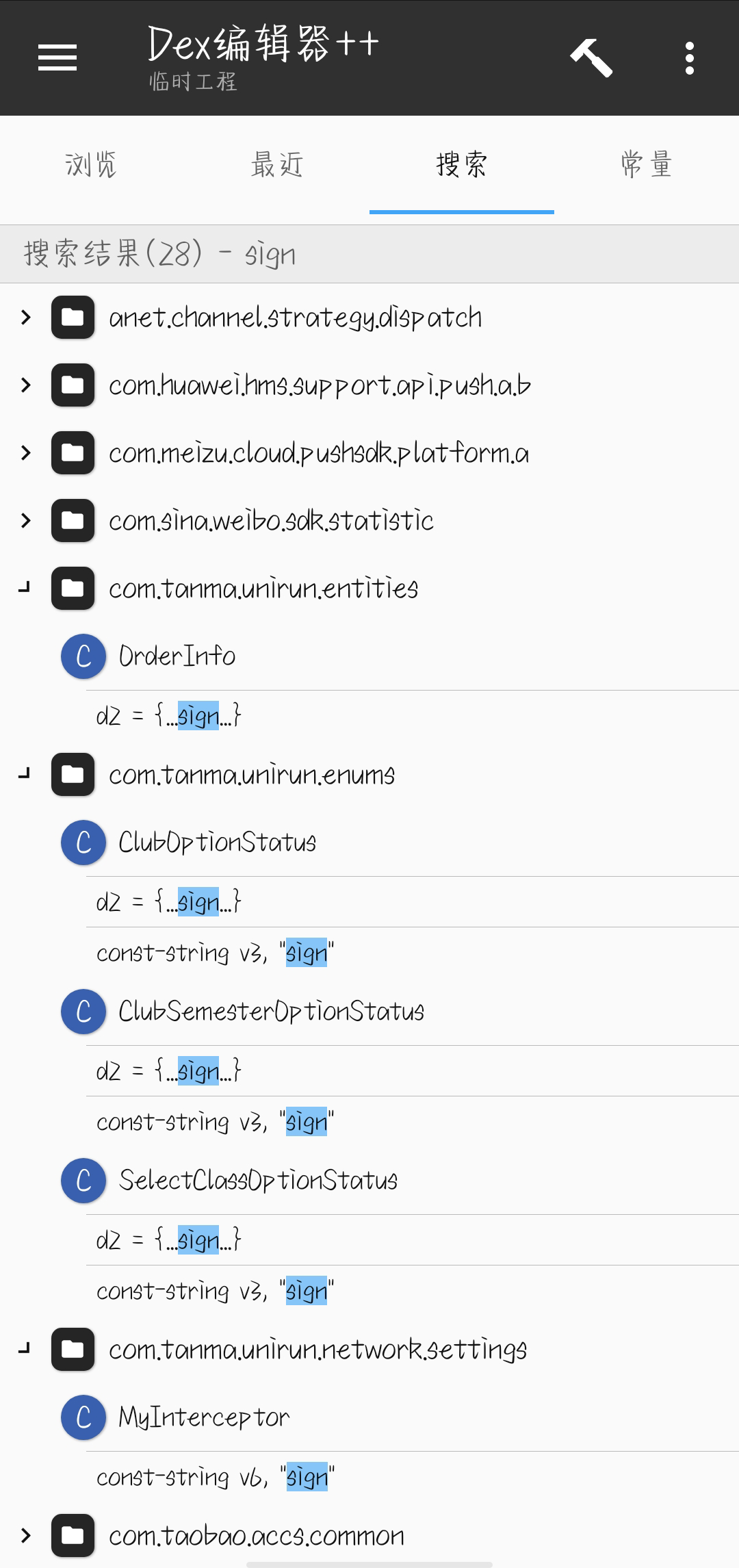

使用MT管理器 的 dex编辑器++ 打开
搜索字符串 sign
只看目标应用的包
看包名:
- entities 实体包,排除
- enums 枚举包,排除
- network.settings 网络设置包 且类名”MyInterceptor”与拦截相关, 大概率符合条件

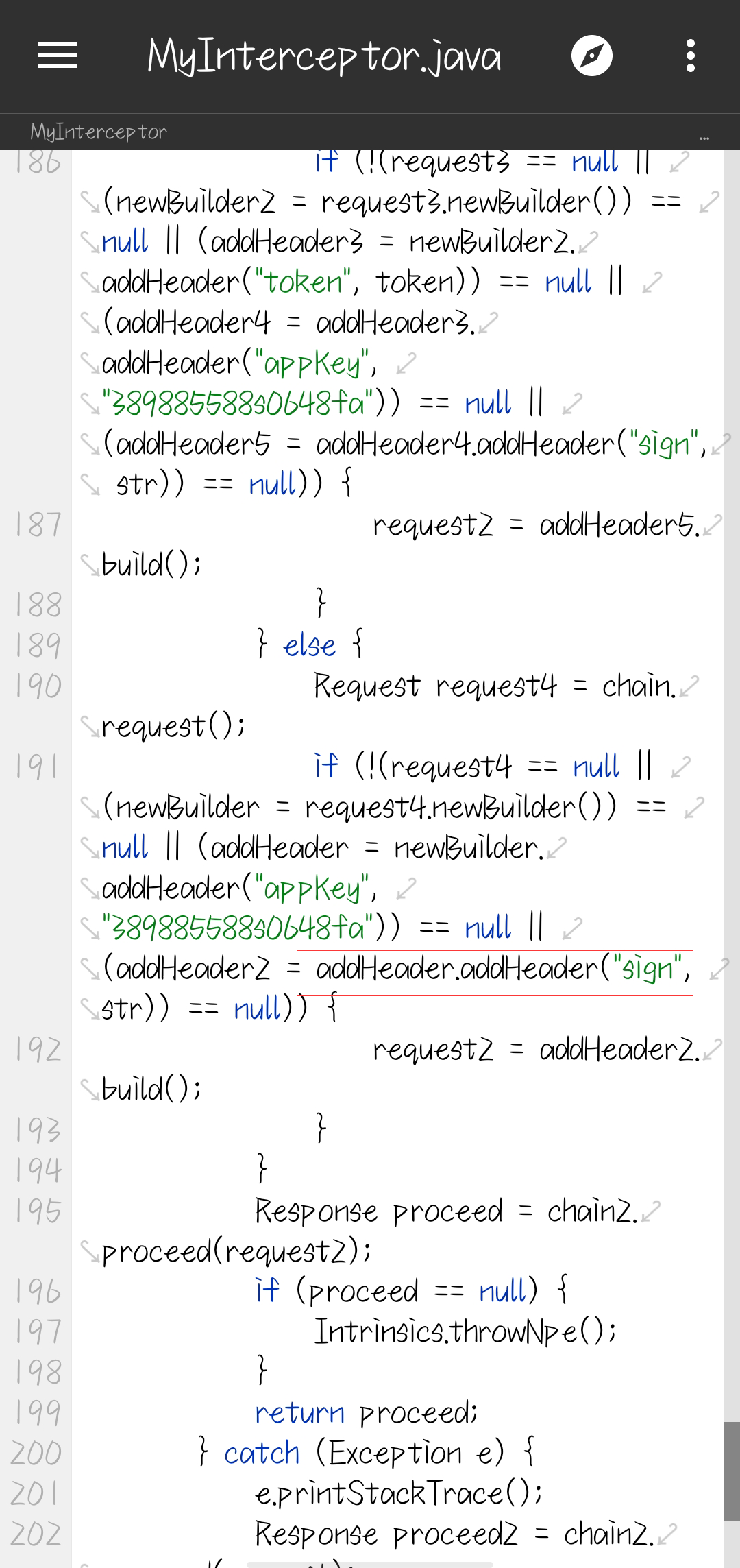

初步查看源码,在请求头中添加sign,肯定是这里了
五、分析代码逻辑
分析请看注释
public final class MyInterceptor implements Interceptor { private static final String APPKEY = "389885588s0648fa"; private static final String APPSECRET = "56E39A1658455588885690425C0FD16055A21676"; private static final Charset ChartSet_UTF8 = Charset.forName("UTF-8"); public static final Companion Companion = new Companion((DefaultConstructorMarker) null); public MyInterceptor() { } static { } public Response intercept(Interceptor.Chain chain) { boolean z; String str; Request.Builder newBuilder; Request.Builder addHeader; Request.Builder addHeader2; Request.Builder newBuilder2; Request.Builder addHeader3; Request.Builder addHeader4; Request.Builder addHeader5; String str2; String str3; boolean z2; String str4; String str5; String str6; String str7; Set queryParameterNames; Interceptor.Chain chain2 = chain; Intrinsics.checkParameterIsNotNull(chain2, "chain"); Request request = chain.request(); // 注意,TreeSet是有序集合,且默认为正序排列,即{a, b, c, d [,...]} TreeSet treeSet = new TreeSet(); Request request2 = null; HttpUrl url = request != null ? request.url() : null; if (!(url == null || (queryParameterNames = url.queryParameterNames()) == null)) { treeSet.addAll(queryParameterNames); } // 待签名字符串 StringBuilder sb = new StringBuilder(); Iterator it = treeSet.iterator(); // 开始迭代所有请求参数 while (true) { z = false; if (!it.hasNext()) { break; } // str8 为参数名 String str8 = (String) it.next(); // 获取参数名对应的值 List queryParameterValues = url != null ? url.queryParameterValues(str8) : null; if (queryParameterValues != null && (true ^ queryParameterValues.isEmpty())) { // 参数值非空 // 取参数值列表第一个 String str9 = (String) (url != null ? url.queryParameterValues(str8) : null).get(0); if (!TextUtils.isEmpty(str9)) { // str8 参数名, str9 参数值 // str9非空,追加str8 str9在sb之后 sb.append(str8); sb.append(str9); } } } // 追加APPKEY sb.append("389885588s0648fa"); // 追加APPSECRET sb.append("56E39A1658455588885690425C0FD16055A21676"); if (request.body() != null) { BufferedSink buffer = new Buffer(); RequestBody body = request.body(); if (body != null) { body.writeTo(buffer); } Charset charset = ChartSet_UTF8; RequestBody body2 = request.body(); MediaType contentType = body2 != null ? body2.contentType() : null; if (contentType != null) { // 追加请求体 sb.append(buffer.readString(contentType.charset(charset))); } } // 同sb String sb2 = sb.toString(); Intrinsics.checkExpressionValueIsNotNull(sb2, "signStr.toString()"); CharSequence charSequence = sb2; if (!(charSequence == null || charSequence.length() == 0)) { // 本级语句块替换一些字符为空字符,即删除部分字符,这将导致参与MD5运算的字符串有所差异 // z2 为是否发生过替换操作 // 删除空格 if (StringsKt.contains$default(charSequence, " ", false, 2, (Object) null)) { str3 = StringsKt.replace$default(sb2, " ", "", false, 4, (Object) null); z2 = true; } else { str3 = sb2; z2 = false; } // 删除~ if (StringsKt.contains$default(str3, "~", false, 2, (Object) null)) { str4 = StringsKt.replace$default(str3, "~", "", false, 4, (Object) null); z2 = true; } else { str4 = str3; } // 删除! if (StringsKt.contains$default(str4, "!", false, 2, (Object) null)) { str5 = StringsKt.replace$default(str4, "!", "", false, 4, (Object) null); z2 = true; } else { str5 = str4; } // 删除( if (StringsKt.contains$default(str5, "(", false, 2, (Object) null)) { str6 = StringsKt.replace$default(str5, "(", "", false, 4, (Object) null); z2 = true; } else { str6 = str5; } // 删除) if (StringsKt.contains$default(str6, ")", false, 2, (Object) null)) { str7 = StringsKt.replace$default(str6, ")", "", false, 4, (Object) null); z2 = true; } else { str7 = str6; } // 删除' if (StringsKt.contains$default(str7, "'", false, 2, (Object) null)) { sb2 = StringsKt.replace$default(str7, "'", "", false, 4, (Object) null); z = true; } else { z = z2; sb2 = str7; } if (z) { sb2 = URLEncoder.encode(sb2, "utf-8"); Intrinsics.checkExpressionValueIsNotNull(sb2, "URLEncoder.encode(dealStr,\"utf-8\")"); } } if (z) { StringBuilder sb3 = new StringBuilder(); // 使用替换结果 sb2 计算MD5 String encodeByMD5 = MD5Digest.Companion.encodeByMD5(sb2); if (encodeByMD5 == null) { str2 = null; } else if (encodeByMD5 != null) { // 转换为大写 str2 = encodeByMD5.toUpperCase(); Intrinsics.checkExpressionValueIsNotNull(str2, "(this as java.lang.String).toUpperCase()"); } else { throw new TypeCastException("null cannot be cast to non-null type java.lang.String"); } sb3.append(str2); // MD5追加编码 sb3.append("encodeutf8"); str = sb3.toString(); } else { MD5Digest.Companion companion = MD5Digest.Companion; // 没有发生替换,使用sb String sb4 = sb.toString(); Intrinsics.checkExpressionValueIsNotNull(sb4, "signStr.toString()"); // 使用sb计算MD5 String encodeByMD52 = companion.encodeByMD5(sb4); if (encodeByMD52 == null) { str = null; } else if (encodeByMD52 != null) { // 转换为大写 str = encodeByMD52.toUpperCase(); Intrinsics.checkExpressionValueIsNotNull(str, "(this as java.lang.String).toUpperCase()"); } else { throw new TypeCastException("null cannot be cast to non-null type java.lang.String"); } } try { User user = (User) new PreUtil("sp_name_user").getValue("sp_user", Reflection.getOrCreateKotlinClass(User.class), (Object) null); if (user != null) { OauthTokenBean oauthToken = user.getOauthToken(); String token = oauthToken != null ? oauthToken.getToken() : null; Request request3 = chain.request(); if (!(request3 == null || (newBuilder2 = request3.newBuilder()) == null || (addHeader3 = newBuilder2.addHeader("token", token)) == null || (addHeader4 = addHeader3.addHeader("appKey", "389885588s0648fa")) == null || (addHeader5 = addHeader4.addHeader("sign", str)) == null) // 添加签名至头部 ) { request2 = addHeader5.build(); } } else { Request request4 = chain.request(); if (!(request4 == null || (newBuilder = request4.newBuilder()) == null || (addHeader = newBuilder.addHeader("appKey", "389885588s0648fa")) == null || (addHeader2 = addHeader.addHeader("sign", str)) == null)) { request2 = addHeader2.build(); } } Response proceed = chain2.proceed(request2); if (proceed == null) { Intrinsics.throwNpe(); } return proceed; } catch (Exception e) { e.printStackTrace(); Response proceed2 = chain2.proceed(request); if (proceed2 == null) { Intrinsics.throwNpe(); } return proceed2; } } }
五、逻辑总结(经过验证)
- 将请求参数正序排序
- 将请求参数按
参数名1参数值1参数名2参数值2....
拼接 - 追加
appkey
, 追加appsecret
- 追加请求体
- 删除部分字符
- 计算MD5
